Troubleshooting – Line Transmitter & Receiver

If your receiver isn’t picking up the signal from your SeekTech or NaviTrack line transmitter these troubleshooting steps can help you identify the issue.

• If your transmitter’s leads are removable make sure they are fully plugged into the transmitter
• If you’re using a non-RIDGID receiver make sure the transmitter and receiver frequencies are an exact match:

• Some SeekTech transmitters support frequencies used by other manufacturers, refer to the user manual for details
• All SeekTech receivers support frequencies used by other manufacturers, refer to the user manual for details

Testing the equipment
Video: https://youtu.be/RKbElWAfZ_0?si=lbUDtwt5a_WE2lQb

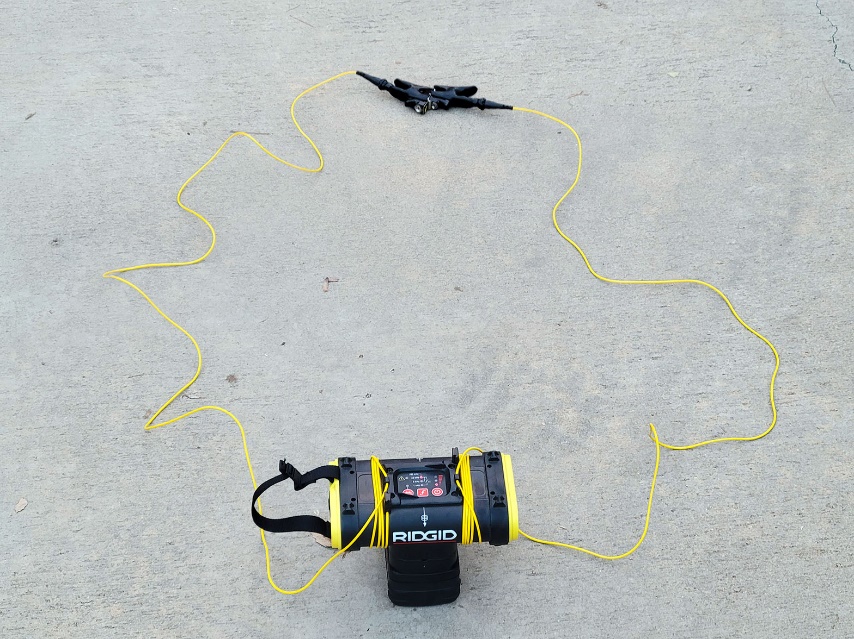

1. Set up a test circuit by connecting the transmitter’s two leads together
   • Make sure you have metal-to-metal contact on the transmitter clips
   • Spread the leads out to reduce signal cancellation

2. Power on the transmitter and select a frequency supported by your receiver
   • You should hear an audible beeping tone (indicates current flow, i.e. a good circuit)

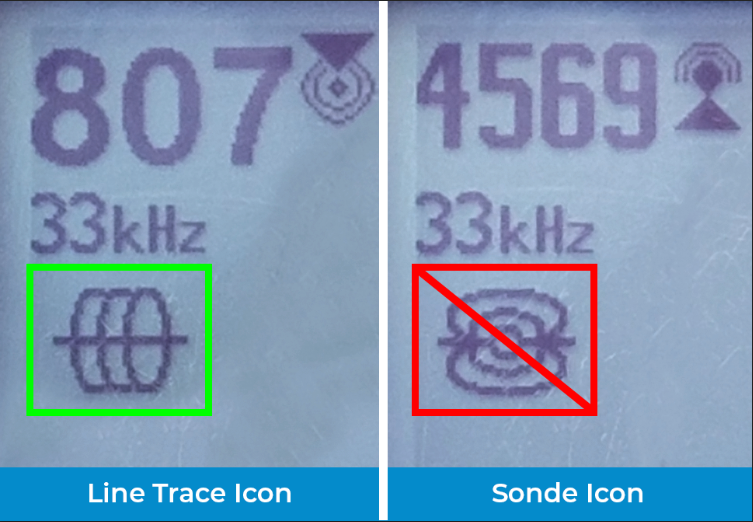

3. Set the receiver to the matching LINE TRACE frequency (look for the line trace icon)

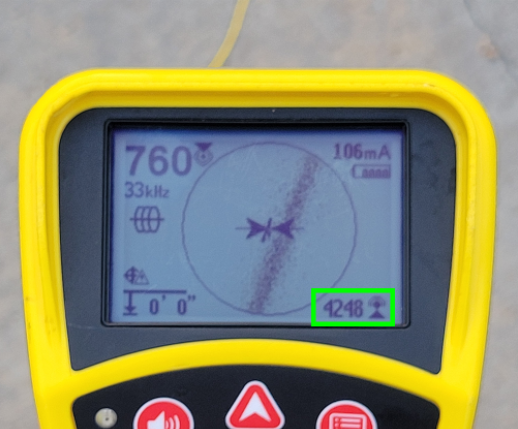

4. Position the receiver over the transmitter’s lead and check for a signal
   • If the receiver doesn't register the transmitter's signal:
     • Confirm the transmitter's jaws are making metal-to-metal contact
     • Confirm that both units are set to the same frequency
     • If possible try a different transmitter and/or receiver
